‹ Home › Inventory › RA1250S 2023 Pan America™ 1250 Special

2023 Harley-Davidson® Pan America™ 1250 Special The Pan America 1250 Special motorcycle is our premier two-wheel multi-tool built to endure| designed to explore| and engineered for adventure. Features may include: THIS IS THE RIGHT BIKE FOREnthusiasts who require top-of-the-line comfort and performanceFor riders who see touring as detouring – on road and offRiders looking for power| tech| and capability – that can be used everyday with comfort and controlDUAL PURPOSE POWERTRAIN The Revolution® Max 1250 is a structural component of the motorcycle chassis| eliminating a traditional frame — which significantly reduces overall weight and keeps handling taut. SEMI-ACTIVE FRONT & REAR SUSPENSION This system reacts to suspension position| vehicle speed| vertical acceleration| roll angle and rate| throttle| brake inputs and the selected Ride Mode to maintain the desired comfort setting. ROAD READY Refined| capable and intuitive| Pan America 1250 Special is designed to maintain high-speed ride and handling performance even when at the limit of its luggage and weight capacity.

Specifications

Dimensions

add remove
- Length:

  89.4 in
- Ground clearance:

  8.3 in
- Rake (steering head):

  25
- Trail:

  4.3 in
- Wheelbase:

  62.4 in
- Tires, front specifications:

  120/70R19 60V
- Tires, rear specifications:

  170/60R17 72V
- Fuel Capacity:

  5.6 gal
- Oil capacity:

  4.75 qt.
- Weight, as shipped:

  534 lbs
- Weight, in running order:

  568.793 lb
Engine

add remove
- Engine:

  Revolution® Max 1250
- Bore:

  4.1 in
- Stroke:

  2.8 in
- Displacement:

  76.40 in³
- Compression ratio:

  13.0:1
- Fuel system:

  Electronic Sequential Port Fuel Injection (ESPFI)
- Exhaust:

  2-into-1-into-1; catalyst in header
Performance

add remove
- Engine torque testing method:

  J1349
- Engine torque:

  93.7 ft-lb
- Engine torque (RPM):

  6,750
- Lean angle, right (deg.):

  42
- Lean angle, left (deg.):

  42
- Fuel economy testing method:

  Estimated City/Hwy
- Fuel economy:

  42.8 mpg (5.5l/100km)
- CO₂ emissions testing method:

  EU 134/2014
- CO₂ emissions :

  129 g/km CO₂
Powertrain

add remove
- Primary drive:

  Gear, 49/89 ratio
- Gear ratios (overall) 1st:

  13.11
- Gear ratios (overall) 2nd:

  9.687
- Gear ratios (overall) 3rd:

  7.509
- Gear ratios (overall) 4th:

  6.057
- Gear ratios (overall) 5th:

  5.08
- Gear Ratios (overall) 6th:

  4.436
Chassis

add remove
- Front fork:

  47mm inverted fork with electronically adjustable semi-active damping control. Aluminum fork triple clamps.
- Rear shocks:

  Linkage-mounted monoshock with automatic electronic preload control and semi-active compression & rebound damping
- Wheels, optional style type:

  Annodized aluminum tubeless laced
- Wheels, front type:

  Aluminum cast, satin black
- Wheels, rear type:

  Aluminum cast, satin black
- Brakes, caliper type:

  Front: radially mounted, monoblock, 4-piston caliper; Rear: floating, single piston caliper
- ABS:

  Standard
Electric

add remove
- Lights (as per country regulation), indicator:

  LED Bullet Turn Signals
- Gauges:

  6.8 inch viewable area TFT display with speedometer, gear, odometer, fuel level, clock, trip, ambient temp, low temp alert, side stand down alert, TIP over alert, cruise, range and tachometer indication BT capable - phone pairing to access phone calls, mu
Infotainment

add remove
- Type:

  Color TFT w/ Touch
- Headset specifications (if equipped):

  Bluetooth
- Hands-free mobile phone — via Bluetooth:

  Standard
- Voice Recognition Languages: Phone functions only:

  Phone dependent
- Voice Recognition Languages: Tuner / Media / Navigation:

  Phone dependent
- Text-to-Speech (TTS) languages:

  Phone dependent
- Rider / passenger intercom:

  Headset function only
- Vehicle information screen:

  TPMS, Engine temp, Battery Voltage, Ambient Air Temp
- USB:

  Charging and Instrument update, USB-C, 5V, 3A
- Bluetooth:

  Phone/Media Supported

Request Details

Please waitseconds before submitting another form. cancel

First name Required

Last name Required

Phone Required

Email Required

Your inquiry

This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

Disclaimer:

All prices exclude $600 dealer titling & processing fee, all taxes, tag, title, dealer setup, destination, registration, and government fees. Out of state buyers are responsible for all taxes and government fees and title/registration fees in the state where the vehicle will be registered. All prices include all manufacturer to dealer incentives, which the dealer retains unless otherwise specifically provided. Pricing may exclude any added parts, accessories or installation unless otherwise noted. Dealer not responsible for errors and omissions; all offers subject to change without notice. Contact dealer for details.

RA1250S 2023 Pan America™ 1250 Special

Price: $19,999.00

: HD313934

: Harley-Davidson®

: Adventure Touring

: New

: 2023

: 7 mi

: Gray Haze

: Revolution Road Harley-Davidson®

Don't miss out! 28 people have recently viewed this.

Request details Get an insurance quote Get financing

508-452-2360

Specifications

Request Details

Disclaimer:

Related models

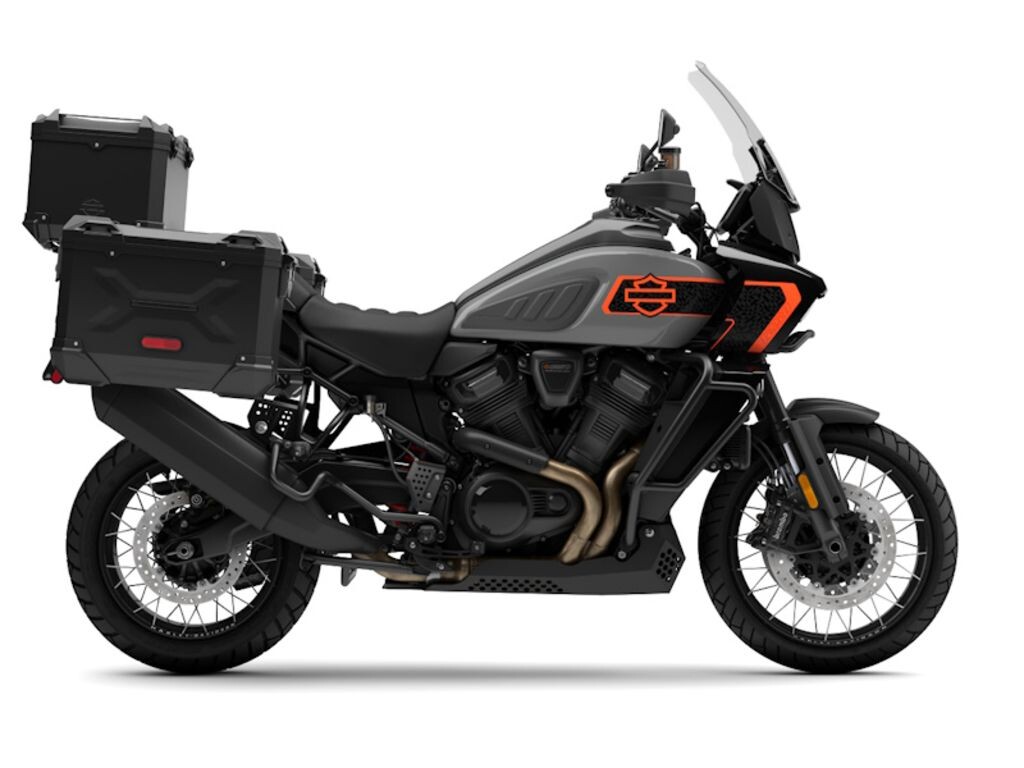

RA1250L 2026 Pan America 1250 Limited
